P230

Medium Density Weather Seal PVC Foam For Auto Parts

Medium Density Weather Seal PVC Foam For Auto Parts

INQUIRY

Product introduction

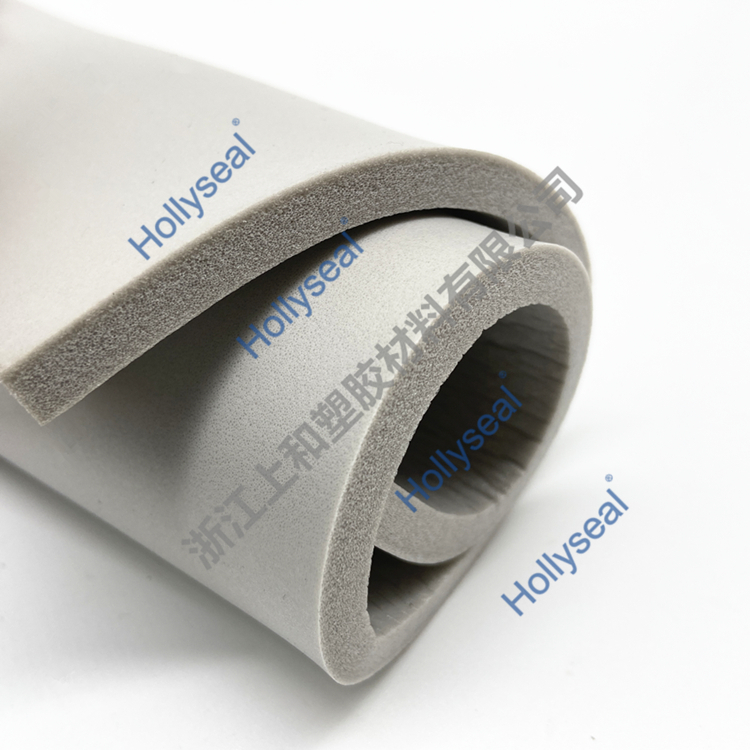

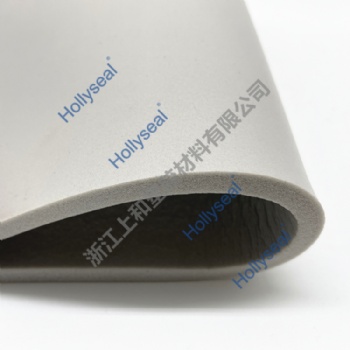

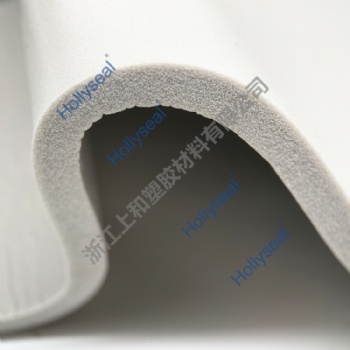

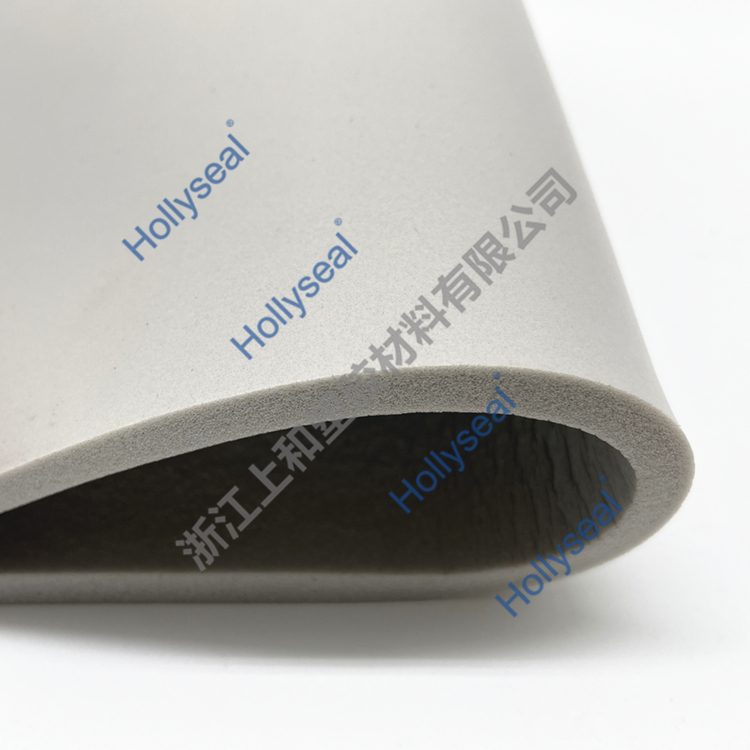

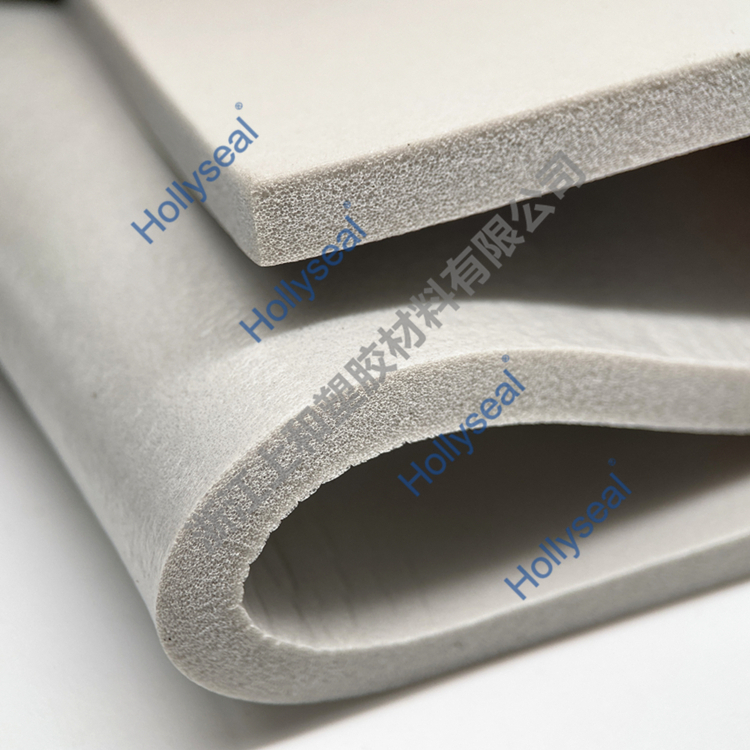

Hollyseal® PVC foam is a closed-cell polyvinyl chloride foam designed to provide an economical solution for sealing light, air and moisture. It can provide performance that meets various application scenarios by adjusting the density,hardness,thickness and resilience of the foam. It is very suitable for various applications such as body damping,door and window sealing, water tank sealing, HVAC sealing, and electronic product cushioning application.

We manufacture finished goods in main types of PVC foam, which are:
●Quick recovery foams – where the material immediately recovers after compression
●Slow recovery PVC foams – ideal for filling irregular surfaces

Product feature

●10% compression provides an excellent seal against light, dust and water

●Conforms to curved and irregular shapes

●Good recovery after compression

●Good vibration dampening and cushioning

●Resistant to weather, UV rays and chemical

●Thicknesses from 0.8 mm up to 16 mm

●Good abrasion resistance

●Passes FMVSS 302

Product application

● Automotive parts
● Water tank sealing
● Door frame assemblies
● Roof sealing for parapets
● Ventilation ducting
● Appliance seals
● Export container seals
● Glazing systems

Technical information

Density	250±30kg/m3
Tensile Strength	≥400 kPa
30% Compression Set	≤7%
Hardness（Shore 00）	55±7°
Elongation	≥110%
Flammability	UL-94 HF-1/HBF FMVSS 302 (V0 can be customized)

Specification

Material		PVC foam
Color		Black,Grey,White,Brown,Special colors can be customized
Thickness	in	0.063,0.079,0.126,0.157,0.189,0.197,0.236, 0.248,0.315,0.374,0.5,0.625,0.75,1
	mm	1.6,2,3.2,4,4.8,5,6,6.3,8,9.5,12.7,16,19,25.4
Length	ft	16.4,20,25,32.8,50,100
	m	5,6.1,7.6,10,15.2,30.5
Width dimension（mm）		1020，1220，1350，1422,Specialcan be customized
